China Type B, R, S, K, N, E, J, T Thermocouple Extension /Compensating Cable/Wires Manufacture and Factory

Type B, R, S, K, N, E, J, T Thermocouple Extension /Compensating Cable/Wires

Short Description:

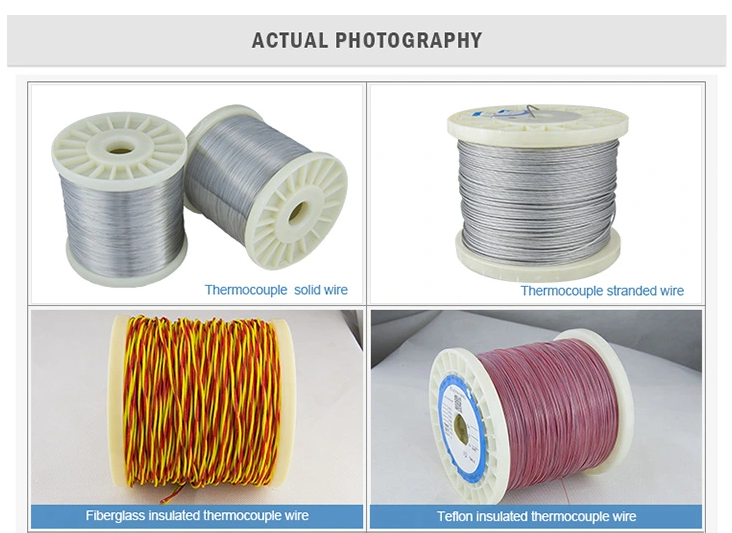

Type K/J/T/S/B/R Thermocouple Cable Wire Te-flon/ Fiberglass Insulated Cable

TANKII produces different types of compensated cable for thermocouple, such as KX type, NX, EX, JX, NC, TX, SC / RC, KCA, KCB. We also produce all cables with insulation such as PVC, PTFE, Silicone and fiberglass.
The compensated cable is mainly used in thermal measurement instrumentation. If the temperature changes, the cable responds with a small voltage that passes to the thermocouple it is connected to and we already have the measurement.

Certificate: ISO 9001

Size: Customized

Model NO.: Type R / B / S/K/N/E/J/T

Material Shape: Round Wire

Certification: ISO9001, CE, RoHS

Brand: TANKII

Section Area: 0.5mm2, 0.75mm2, 1.0mm2

Grade: I, II,

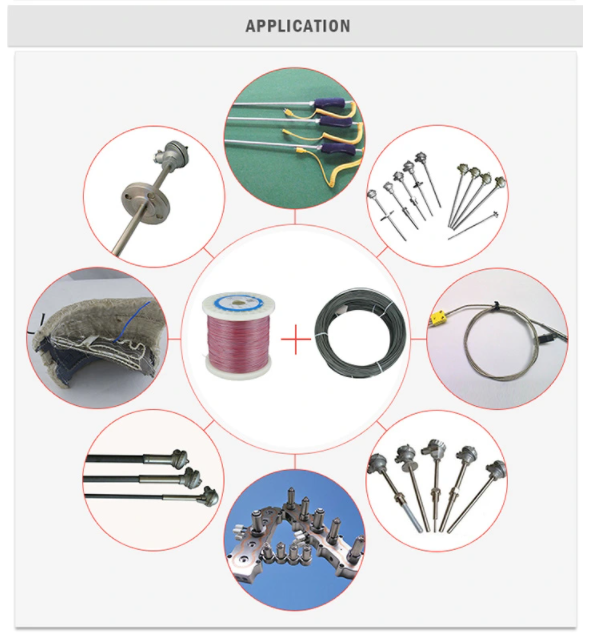

Usage: Thermocouple Sensors

Insulation: Fiberglass, PVC, PTFE, Silicon Rubber

Temperature Range: -60-1100

Colour: IEC, ANSI, BS

Surface: Bright/ Oxidized Thermocouple Wire

Dia: 0.3/0.5/0.8/1.0/1.2/1.6/2.0/2.5/3.2mmm

Specification: According to clients requirements

Transport Package: on Reel, Carton Box

HS Code: 7505220000

Send email to us

Product Detail

FAQ

Product Tags

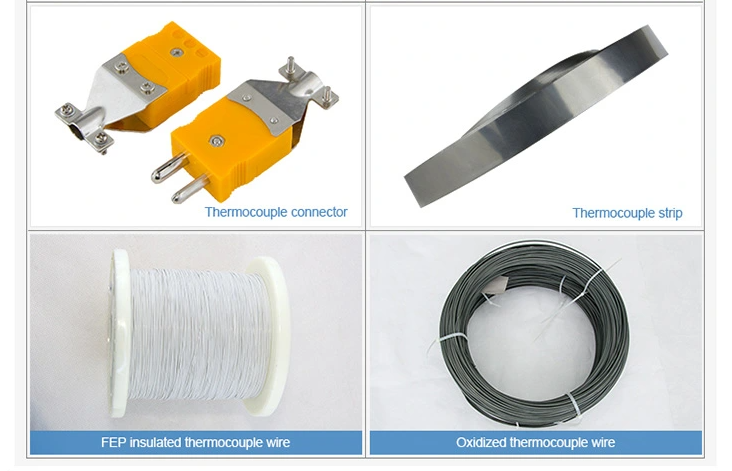

Type K/J/T/S/B/R Thermocouple Cable Wire Te-flon/ Fiberglass Insulated Cable

TANKII produces different types of compensated cable for thermocouple, such as KX type, NX, EX, JX, NC, TX, SC / RC, KCA, KCB. We also produce all cables with insulation such as PVC, PTFE, Silicone and fiberglass.
The compensated cable is mainly used in thermal measurement instrumentation. If the temperature changes, the cable responds with a small voltage that passes to the thermocouple it is connected to and we already have the measurement.

The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.

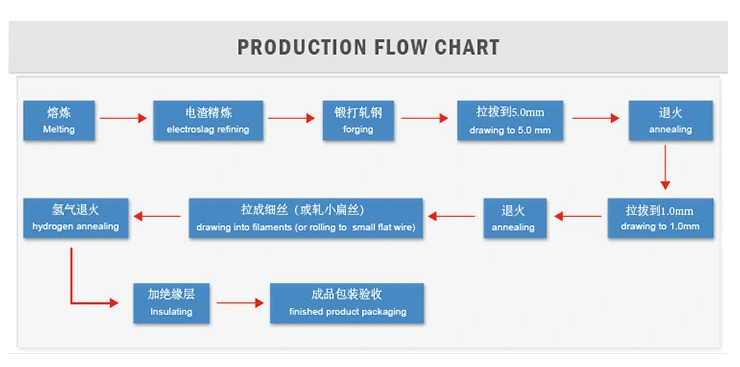

Our plant mainly manufacture type KX,NX,EX,JX,NC,TX,SC/RC,KCA,KCB compensating wire for thermocouple, and they are used in temperature measurement instruments and cables. Our thermocouple compensating products are all made abiding by GB/T 4990-2010 ‘Alloy wires of extension and compensating cables for thermocouples’ (Chinese National Standard), and also IEC584-3 ‘Thermocouple part 3-compensating wire’ (International standard).

The representing of the comp. wire: thermocouple code+C/X , e.g. SC, KX
X: Short for extension, means that the compensation wire’s alloy is as the same as the the alloy of the thermocouple
C: Short for compensation, means that the compensation wire’s alloy has similar characters with the thermocouple’s alloy in a certain temperature range.

NiCr-NiSi Thermocouple Compensation Wire Used For The thermostat

Detailed Parameter of thermocouple cable

Thermocouple Code	Comp. Type	Comp. Wire Name	Positive		Negative
Thermocouple Code	Comp. Type	Comp. Wire Name	Name	Code	Name	Code
S	SC	copper-constantan 0.6	copper	SPC	constantan 0.6	SNC
R	RC	copper-constantan 0.6	copper	RPC	constantan 0.6	RNC
K	KCA	Iron-constantan22	Iron	KPCA	constantan22	KNCA
K	KCB	copper-constantan 40	copper	KPCB	constantan 40	KNCB
K	KX	Chromel10-NiSi3	Chromel10	KPX	NiSi3	KNX
N	NC	Iron-constantan 18	Iron	NPC	constantan 18	NNC
N	NX	NiCr14Si-NiSi4Mg	NiCr14Si	NPX	NiSi4Mg	NNX
E	EX	NiCr10-Constantan45	NiCr10	EPX	Constantan45	ENX
J	JX	Iron-constantan 45	Iron	JPX	constantan 45	JNX
T	TX	copper-constantan 45	copper	TPX	constantan 45	TNX
